一般结构用钢板
Steel Plates for General Structure
主要用途
Steel plates for general structure are widely used in engineering structures such as steel structure buildings, construction machinery, heavy duty cars, bridges, wind power， pressure vessels and so on.

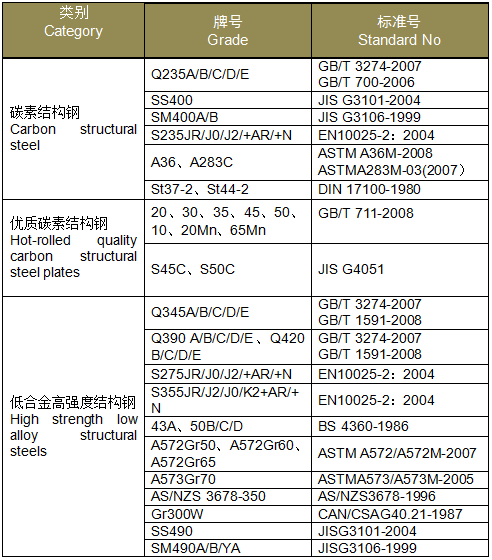

牌号和标准
产品规格
锅炉和压力容器用钢板
Steel Plates for Boilers and Pressure Vessels
主要用途
They are mainly used to manufacture boilers and pressure vessels. The steel plates for pressure vessels can be fabricated into device that will sustain certain pressure, temperature and medium, so they are required to possess high strength, good toughness, weldability and surface quality. Many kinds and sizes of the products are required to deliver in heat treatment condition and satisfy ultrasonic test requirements. These steels are widely used in various sectors in national economy, such as reactor, heat exchanger, separator, spherical tank, oil tank, LPG tank ,boiler steam drum and pressure pipes in machinery, petroleum and chemicals, electric power and metallurgy industries, etc.
牌号和标准
|
名称 |
牌号 Grade |
标准号 |
|
锅炉和压力容器用钢板 |
Q245R、Q 345R、Q370R、Q420R |
GB/T 713 |
|
18MnMoNbR、13MnNiMoR、15CrMoR、12Cr2Mo1R、14Cr1MoR、12Cr1MoVR |
||
|
低温压力容器用钢板 |
16MnDR、15MnNiDR、15MnNiNbDR、09MnNiDR |
GB/T 3531 |
|
08Ni3DR、06Ni9DR |
||
|
高强度罐体及水电压力钢管用钢板 |
A537/SA537 CL2/CL3 |
美标 |
|
07MnMoVR、07MnNiVDR、07MnNiMoDR、12MnNiVR |
GB/T 19189 |
|
|
抗HIC/SSCC容器钢板 |
Q245R(R-HIC)、Q345R(R-HIC)、(S)A516Gr60/65/70(R-HIC) |
用户要求 |
|
高炉炉壳板 |
LK490C |
|
|
其他国外标准 |
A515/SA515、A516/SA516、A537/SA537以及A517/SA517系列等 |
美标 |
|
P355GH、16Mo3、13CrMo4-5 |
欧标 |
|
|
SPV355、SPV490 等 |
日标 |
产品规格
主要产品The main products邮箱：电话：
主要产品The main products邮箱：电话：
高强度结构用钢板
High strength steel plates for structure
主要用途
High strength steel plates for structure have high strength, good low temperature toughness in addition to the excellent welding performance. They are mainly used for the fabrication of the high strength welding structure of construction machinery, coal mining equipment（hydraulic support, scraper conveyer）,boom, outrigger, frame , bulldozer, dump truck, drilling platform ,drilling rig and steel structure and so on. According to purpose，there are 60-80kg high strength steel plates，60-90kg low welding crack sensitive steel plates, quench and temper ultra-high strength steel plates etc.
牌号和标准
产品规格
高强度结构用钢板
High strength steel plates for structure
主要用途
高强度结构用钢板，具有高的强度和良好低温韧性，焊接性能优良。主要用于制作高强度工程机械焊接结构、煤炭开采设备（液压支架、刮板运输机）、起重机吊臂支腿、车架、推土机、自卸车、钻井平台、钻机、钢结构等。根据用途可分为60-80kg级高强度结构钢板、60-90kg级低焊接裂纹敏感性高强度钢板、淬火回火超高强度钢板等系列产品。
High strength steel plates for structure have high strength, good low temperature toughness in addition to the excellent welding performance. They are mainly used for the fabrication of the high strength welding structure of construction machinery, coal mining equipment（hydraulic support, scraper conveyer）,boom, outrigger, frame , bulldozer, dump truck, drilling platform ,drilling rig and steel structure and so on. According to purpose，there are 60-80kg high strength steel plates，60-90kg low welding crack sensitive steel plates, quench and temper ultra-high strength steel plates etc.
牌号和标准
60-80kg级高强度结构钢板（60-80kg high strength steel plates ）
Q460C/D/E/F
GB/T16270-2009
GB/T 1591-2008
Q550C/D/E/F GB/T16270-2009
GB/T 1591-2008
Q690C/D/E/F GB/T16270-2009
GB/T 1591-2008
S460Q/QL/QL1
S500 Q/QL/QL1 EN10025-6：2004
S550Q/QL/QL1
S620 Q/QL/QL1 EN10025-6：2004
S690Q/QL/QL1 EN10025-6：2004
A514 Grade S ASTM A 514
60-90kg级低焊接裂纹敏感性高强度钢板（60-90kg low welding crack sensitive steel plates Q460CFC/D/E YB/T4137-2005）
Q500CFC/D/E YB/T4137-2005
Q550CFC/D/E YB/T4137-2005
Q620CFC/D/E YB/T4137-2005
Q690CFC/D/E YB/T4137-2005
Q800CFC/D/E YB/T4137-2005
淬火回火超高强度钢板
quench and temper ultra-high strength steel plates Q800C/D/E GB/T16270-2009
Q890C/D/E GB/T16270-2009
Q960C/D/E GB/T16270-2009
S890Q/QL/QL1 EN10025-6：2004
S960Q/QL/QL1 EN10025-6：2004
产品规格
锅炉和压力容器用钢板
Steel Plates for Boilers and Pressure Vessels
主要用途
They are mainly used to manufacture boilers and pressure vessels. The steel plates for pressure vessels can be fabricated into device that will sustain certain pressure, temperature and medium, so they are required to possess high strength, good toughness, weldability and surface quality. Many kinds and sizes of the products are required to deliver in heat treatment condition and satisfy ultrasonic test requirements. These steels are widely used in various sectors in national economy, such as reactor, heat exchanger, separator, spherical tank, oil tank, LPG tank ,boiler steam drum and pressure pipes in machinery, petroleum and chemicals, electric power and metallurgy industries, etc.
牌号和标准
|
名称 |
牌号 Grade |
标准号 |
|
锅炉和压力容器用钢板 |
Q245R、Q 345R、Q370R、Q420R |
GB/T 713 |
|
18MnMoNbR、13MnNiMoR、15CrMoR、12Cr2Mo1R、14Cr1MoR、12Cr1MoVR |
||
|
低温压力容器用钢板 |
16MnDR、15MnNiDR、15MnNiNbDR、09MnNiDR |
GB/T 3531 |
|
08Ni3DR、06Ni9DR |
||
|
高强度罐体及水电压力钢管用钢板 |
A537/SA537 CL2/CL3 |
美标 |
|
07MnMoVR、07MnNiVDR、07MnNiMoDR、12MnNiVR |
GB/T 19189 |
|
|
抗HIC/SSCC容器钢板 |
Q245R(R-HIC)、Q345R(R-HIC)、(S)A516Gr60/65/70(R-HIC) |
用户要求 |
|
高炉炉壳板 |
LK490C |
|
|
其他国外标准 |
A515/SA515、A516/SA516、A537/SA537以及A517/SA517系列等 |
美标 |
|
P355GH、16Mo3、13CrMo4-5 |
欧标 |
|
|
SPV355、SPV490 等 |
日标 |
产品规格
结构用热轧钢板和钢带
Hot-rolled Steel Sheets and Strips for Structures
主要用途
结构用钢一般具有较高的强度与较好的成型性能，通常经过简单的加工后承受外部的载荷。适用于焊接、铆接、铰接等一般结构件用。该系列产品具有性能可靠，成型性能好，焊接性能优的特点，产品能够应用于建筑结构、桥梁、船舶、铁路车辆、管道大型机械及其他结构件等各个行业。主要按照国标进行供货，也可参照日标和欧标进行供货。
The structural steel generally has high strength and good formability, is
used to bear external load after simple fabrication and applicable to ordinary
structural members subject to welding, riveting and hinging.
This series of products are characterized by reliable performance, good
formability and excellent weldability, and can be used in various sectors like
building structures, bridges, ships, railway vehicles,
pipelines, large machineries and other structural members. The supply of those
products are mainly in accordance with Chinese national standards, and the
Japanese and European standards
may be taken as references as well.
牌号和标准
该系列产品可供牌号如下表所示，超出规格范围可与我们联系。
The available designations of this series of products are shown below, and please contact us if any required product is out of the range.
国标与日标牌号对应表
Cross Reference of the Steel Designations as per Chinese and Japanese Standards
|
标准 |
GB 912/GB3274/GB710/GB711 |
JIS G3101 |
|
牌号 |
Q195, Q215A |
SS330 |
|
Q235A, Q255A |
SS400 |
|
|
Q275A |
SS490 |
国标与德标、欧标牌号对应表
Cross Reference of Steel Designations as per Chinese, German and European Standards
|
标准 Standard |
GB 912/GB 3274 |
EN10025-2 |
DIN 17100 |
|
牌号 Designation |
Q195、Q215B |
S185 |
St33 |
|
Q235B |
S235JR |
St37-2，RSt37-2 |
|
|
Q235C |
S235J0 |
St37-3 |
|
|
Q235D |
S235J2 |
- |
|
|
Q275B |
S275JR |
St44-2 |
|
|
Q275C |
S275J0 |
St44-3 |
|
|
Q275D |
S275J2 |
- |
|
|
Q345A |
E295 |
St50-2 |
|
|
Q345B |
S355JR |
- |
|
|
Q345C |
S355J0 |
St52-3 |
|
|
Q345D |
S355J2 |
- |
|
|
Q345E |
S355K2 |
- |
产品规格
1.3-25.4*830-1900mm
主要产品The main products邮箱：250101电话：0531-67606362
核电用钢板 SA738Gr.B
Steel plate for nuclear power SA738Gr.B
主要用途
具有较高的强度、良好的塑韧性和焊接性能，用于制造核反应堆厂房钢质安全壳。
With high strength, good plasticity, toughness and weldability, suitable for manufacture of the steel containment vessel for the nuclear reactor plant.
牌号和标准
产品牌号： SA738Gr.B
Product grade: SA738GR.B
执行标准： ASME SA-738/SA-738M-2010
Applicable standard: ASME SA-738/SA-738M-2010
产品规格
4～120×1500～4100×Lmm
核电用钢板 P235/265/295/355GH
Steel plate for nuclear power P235/265/295/355GH
主要用途
具有良好的塑性、韧性、冷弯性能和焊接性能。适用于制造核岛钢质安全壳、压力容器、设备构件等。
With good plasticity, toughness, cold bending property and welding performance. Suitable for manufacture of the steel containment vessel for the nuclear island, pressure vessel, equipment components and so on.
牌号和标准
产品牌号： P235GH、 P265GH、 P295GH、 P355GH
Product grade: P235GH, P265GH, P295GH, P355GH
执行标准： EN10028-2
Applicable standard: EN10028-2
产品规格
4～90×1500～4100×Lmm
核电用钢板 SA516GR55、 SA516GR60、 SA516GR65、 SA516GR70
Steel plate for nuclear power SA516GR55, SA516GR60
主要用途
具有较高强度、良好塑韧性和焊接性能，用于制造核电用压力容器设备。
With high strength, good plasticity, toughness, and welding performance, suitable for manufacture of the pressure vessel and equipment components for nuclear power plant.
牌号和标准
产品牌号： SA516GR55、 SA516GR60、 SA516GR65、 SA516GR70
Product grade: SA516GR55, SA516GR60, SA516GR65, SA516GR70
执行标准： ASME SA-516/SA-516M-2010
Applicable standard: ASME SA-516/SA-516M-2010
产品规格
6~120×1500~4100×Lmm
核电用钢板 SA517
Steel plate for nuclear power SA517
主要用途
具有高强度、良好的塑韧性和焊接性能，用于核电站机械模块支撑件。
With high strength, good plasticity, toughness and weldability, suitable for manufacture of the mechanical module support for nuclear power plants.
牌号和标准
产品牌号： SA517Gr.B、 SA517Gr.F
Product grade: SA517GR.B, SA517GR.F
执行标准： ASME SA-517/SA-517M-2010
Applicable standard: ASME SA-517/SA-517M-2010
产品规格
4～120×1500～4100×Lmm
60-90kg 级低焊接裂纹敏感性高强度钢板
60-90kg grade low welding crack susceptibility hig
主要用途
本产品系屈服强度 460、 500、 550、 620、 690、 800MPa 的低焊接裂纹敏感性钢，具有省略焊前预热、焊后无需热处理的优 良的焊接性能，可用于各种煤矿机械、工程机械、港口机械、建筑机械及其它要求良好焊接性的结构部件等。
This product is the low welding crack susceptibility steel plate with the yield strengths of 460, 500, 550, 620, 690 and
800MPa, showing excellent welding performance due to no need of preheating before welding or heat treatment after welding, suitable for manufacture of various mining machinery, engineering machinery, port machinery, construction machinery and other structural components of good welding requirements.
牌号和标准
|
Q460CFC/D/E Q500CFC/D/E Q550CFC/D/E Q620CFC/D/E |
标准： YB/T4137-2005《 《低焊接裂纹敏感性高强度钢板》
Standard: YB/T4137-2005: Low Welding Crack Susceptibility High Strength Steel Plate
|
|
Q690CFC/D/E |
|
|
Q800CFC/D/E |
|
|
JG670CF G785CF |
协议：
JGX698-2011《 JG670CF、 JG785CF 低焊接裂纹敏感性高强度钢板技术协议》
Agreement: JGX698-2011: JG670CF and JG785CF Technical Agreement for
Low Welding Crack Susceptibility High Strength Steel Plate
|
产品规格
4～80×2200～3800×6000～12000mm
90-120kg 级系列淬火回火高强度钢板
90-120kg grade series quenched and tempered high s
主要用途
本产品系屈服强度 800、 890、 960、 1030MPa 淬火回火交货的高强度钢，可用于矿山开采和各类工程施工用的设备，如钻机、电铲、 电动轮翻斗车、挖掘机、装载机、推土机、混凝土泵车、消防云梯、各类起重机及煤矿液压支架等。
This product is the quenched and tempered high strength steel plate with the yield strengths of 800, 890, 960 and
1030MPa, suitable for manufacture of equipment used in mining and all kinds of engineering construction, such as drilling rig, electric shovels, electric wheel dump trucks, excavator, loaders, bulldozers, concrete pump truck, fire ladder, various cranes, coal mine hydraulic supports and so on.
牌号和标准
|
Q800C/D/E |
标准：
GB/T16270-2009《高强度结构用调质钢板》
Standard: GB/T16270-2009: Quenched and Tempered Steel Plate for High Strength Structure
|
|
Q890C/D/E |
|
|
Q960C/D/E |
|
|
JG1200D |
标准：
Q/3700LYS 299－2010《工程机械用超高强韧结构钢板》
Standard: Q/3700LYS 299－2010: Ultra High Strength and Toughness Structural Steel Plate for Engineering
Machinery
|
产品规格
4～80×1500～3800×6000～12000mm
A、 B、 D、 E 级船体用结构钢板
A, B, D and E grade structural steel plate for shi
主要用途
A、B、 D、 E 级系列产品具有良好的综合机械性能、焊接性能、工艺性能。适用于造远洋、沿海和内河航区船舶船体结构、船坞、 采油平台、海洋中输送管道、沿海发电厂、码头设施等结构件。
A, B, D, E GRADE SERIES PRODUCTS HAVE GOOD COMPREHENSIVE MECHANICAL PROPERTIES, WELDING PERFORMANCE AND PROCESS PERFORMANCE, SUITABLE FOR MANUFACTURE OF THE STRUCTURAL MEMBERS FOR SHIP HULLS, DOCKS,OIL PLATFORM, MARINE PIPELINE, COASTAL POWER PLANT, WHARF FACILITIES AND OTHER STRUCTURES IN OCEAN, COAST AND INLAND RIVER NAVIGATION AREA.
牌号和标准
牌号： A、 B、 D、 E（ Z25、 Z35）；
Grade: A, B, D, E (Z25, Z35);
执行标准：九国船规、渔规、 GB712-2000《船体用结构钢》
Applicable standard: Rules for certification by the world's most famous nine recognized classification societies, regulations for fisheries, and GB712-2000 Structural Steel for Ship Hull
产品规格
4～60×1400～4100×4000～18000mm
主要产品The main products邮箱：3电话：0531-67606362
国标H型钢
Chinese H-steel
主要用途
本产品为国标系列 H 型钢，应用于各种钢结构建筑领域。
This product is the national standard series h-beam, which is used in various steel structure building fields.
牌号和标准
产品牌号： Q235B、 Q345B
Product brands: Q235B, Q345B
执行标准： GB/T 700-2006、 GB/T 1591-2008、 GB/T 11263-2005
Executive standards: GB/T 700-2006, GB/T 1591-2008, GB/T 11263-2005
产品规格
国标系列全部规格
Gb series full specifications
美标H型钢
American standard H-section steel
主要用途
本产品为美标系列 H 型钢，应用于各种钢结构建筑领域。
This product is an American Standard series H-section steel, suitable for use in various steel structure construction/building fields.
牌号和标准
产品牌号：A36、GR50
Product grade: A36, GR50
执行标准：ASTM A36/A36M、ASTM A572/A572M、ASTM A6/A6M
Applicable standard: ASTM A36/A36M, ASTM A572/A572M, ASTM A6/A6M
产品规格
ASTM A6/A6M 内所有 H 型规格。
ASTM A6/A6M related H-section specification.
欧标H型钢
EN H-section steel
主要用途
本产品为欧标系列 H 型钢，应用于各种钢结构建筑领域。
This product is an European Norm series H-section steel, suitable for use in various steel structure construction/building fields.
牌号和标准
产品牌号： S235JR/J0/J2、 S275JR/J0/J2、 S355JR/J0/J2/K2、 S450J0
Product grade: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0
执行标准： EN10025、 BS4-1、 EN1003。
Applicable standard: EN10025, BS4-1, EN1003.
产品规格
BS4-1《结构用型钢》内所有规格。
BS4-1 related all specifications under Structural Section Steel.
日标H型钢
Japanese standard H-section steel
主要用途
本产品为日标系列 H 型钢，应用于各种钢结构建筑领域。
This product is a Japanese Standard series H-section steel, suitable for use in various steel construction/structure building fields. .
牌号和标准
产品牌号： SS330、 SS400、 SS490、 SM400A/B/C、 SM490 A/B/C、 SM490YA/YB、SN400A/B/C、 SN490B/C
Product grade: SS330, SS400, SS490, SM400A/B/C, SM490 A/B/C, SM490YA/YB, SN400A/B/C, SN490B/C
执行标准： JIS 310、 JIS 3106、 JIS G3136、 JIS 3192。
Applicable standard: JIS 310, JIS 3106, JIS G3136, JIS 3192.
产品规格
JIS 3192 内所有 H 型规格。
JIS 3192 related allH -section steel specification.
澳标H型钢
Australian Standard H-section steel
主要用途
本产品为澳标系列 H 型钢，应用于各种钢结构建筑领域。
This product is an Australian Standard series H-section steel, suitable for use in various steel structure construction/building fields.
牌号和标准
产品牌号： Grade300
Product grade: Grade300
执行标准： AS/NZS 3679.1:19JISG3192
Applicable standard: AS/NZS 3679.1: 19JISG3192
产品规格
AS/NZS 3679.1:19JISG3192 内所有 H 型规格。
AS/NZS 3679.1: 19JISG3192 related all H-section steel specification.
俄标H型钢
Russian Standard H–section steel
主要用途
本产品为俄标系列 H 型钢，应用于钢结构建筑、石油工程领域。
This product is a Russian Standard series H-section steel, suitable for use in steel structure construction/building and petroleum engineering fields.
牌号和标准
产品牌号： C245、 C255、 C345
Product grade: C245, C255, C345
执行标准： сто АСЧМ -20-93
Applicable standard: сто АСЧМ -20-93
产品规格
35Ш2。
耐低温用H型钢
Low temperature resistant H–section steel
主要用途
本产品主要应用于机械制造、高层建筑、桥梁闸坝等行业，特别是北方寒冷地区耐低温要求的医院、体育场馆、商场、交通枢纽 的重大建筑工程和钢构中。
This product is mainly used in machinery manufacturing, high-rise buildings, bridges, gates/dams and other industries, especially the major construction projects and steel structure in the hospitals, stadiums, shopping malls, transportation hubs in the northern cold areas where there is a requirement for low temperature.
牌号和标准
产品牌号： Q345C/D/E/EL、 Q420D/EM、 Q460EM
Product grade:Q345C/D/E/EL ,Q420D/EM ,Q460EM
执行标准： GB/T 1591 和技术协议
Applicable standard: GB/T 1591 and technical agreement
产品规格
H100×100～H900×300
高强度H型钢桩
High strength H–section steel pile
主要用途
本产品适用于香港、东南亚等地区深基坑建设，主要用作高层建筑基础和主要承重结构制作。
This product is suitable for deep foundation pit construction in Hongkong, Southeast Asia and other areas, mainly used in high-rise building foundation and the main load-bearing structure.
牌号和标准
产品牌号： S450J0
Product grade: S450J0
执行标准： GB/T 11263
Applicable standard: GB/T 11263
产品规格
UC305×305 系列
UC305×305 Series
耐火耐候H型钢
Fire resistant and weather resistant H-section ste
主要用途
本产品适用于对耐候性能和防火性能有一定要求的钢结构建筑工程。
The product is suitable for the steel structure construction engineering which has certain requirements for weather resistance and fireproof performance.
牌号和标准
产品牌号：LWFR490
Product grade: LWFR490
执行标准：GB/T 1591 和技术协议
Applicable standard: GB/T 1591 and technical agreement
产品规格
H100×100～H900×300
抗震性能H型钢
Seismic resistant H-section steel
主要用途
本产品主要在地震多发地区钢结构领域应用，主要应用于建设医院、体育场馆、商场、 交通枢纽以及地震避难场所等人员密集的 公共服务设施国家公共安全的重大建筑工程。
This product is mainly used in the steel structure field of the earthquake prone areas, mainly suitable for construction of hospitals, stadiums, shopping malls, transportation hubs, earthquake shelters and other crowded public service facilities and major construction projects for national public security.
牌号和标准
产品牌号： Q345S
grade: Q345S
执行标准： GB11263
Applicable standard: GB11263
产品规格
HH250×250~H900×300
核电用H型钢
H-section steel for nuclear power plant
主要用途
在核岛内主要用于模块支架的制作，对质量要求严格，且要求具有一定的耐腐蚀能力。
Mainly used within the nuclear island for the manufacture of the module supports, which has strict requirements for quality, and requirements for a certain corrosion resistance.
牌号和标准
产品牌号： S235J0
Product grade: S235J0
执行标准： EN10025、 BS4-1、 EN10034
Applicable standard: EN10025, BS4-1, EN10034
产品规格
HEB 100、 HEB 140、 HEB 200
船体及石油工程用钢
Steel for ship hulls and petroleum projects
主要用途
主要应用于船舶内部构造用结构件。石油平台用 H 型钢应用于石油平台整体结构建造领域。
Mainly used for structural parts of internal structures of ships. Petroleum platform H-section steel is used in the construction of integral structure of petroleum platform.
牌号和标准
产品牌号： SM490YB、 A、 D、 D36、 AH32、 DH36。
Product grade: SM490YB, A, D, D36, AH32, DH36.
执行标准： JIS G3106、 GB 712-2000、 ASTM A578-B
Applicable standard: JIS G3106, GB 712-2000, ASTM A578-B
产品规格
国标、英标、美标和欧标等规格产品。
Chinese Standard, British standard, European Standard, American Standard and other specifications for products.
铁路接触网支柱用H型钢
H-section steel for pillars/supports of railway ca
主要用途
主要应用于铁路领域的接触网支柱，是钢筋混凝土接触网支柱的替代产品。
Mainly used in manufacture of the pillars/supports for railway catenary system, as an alternative product of the reinforced concrete pillars/supports for the catenary system.
牌号和标准
产品牌号： Q235B/C/D、 Q345B/C/D/E
Product grade: Q235B/C/D, Q345B/C/D/E
执行标准： GB/T 700、 DIN 1025-2、 EN 10034
Applicable standard: GB/T700 , DIN 1025-2 , EN 10034
产品规格
IPB240、 IPB（ V） 240T、 IPB260、 IPB280、 IPB300
电网建设用大角钢
Large-sized angle steel for power grid constructio
主要用途
主要用于超高压输电线路中的铁塔制作，具有强度高、承载能力大的特点，可以有效提高铁塔的安全性能，同时还可以减少铁塔整体重量，降低铁塔制作成本。
Mainly used in fabrication of tower for EHV power transmission line, characterized by high strength and large
load-bearing capacity, capable to effectively improve the safety performance of the tower, and also reduce the overall weight of the tower and lower the cost for tower manufacturing.
牌号和标准
产品牌号： Q345B、 Q420B、 Q420C、 Q420D、 Q460C、 Q460D
Product grade: Q345B, Q420B, Q420C, Q420D, Q460C, Q460D执行标准： GB/T 700
Applicable standard: GB/T 700
产品规格
∠220、∠250 系列
∠220, ∠250 Series矿山工程用钢
Steel for mining projects
主要用途
主要用于矿山隧道支护，特别是一些围岩变形量较大的巷道，也对矿用支护型钢的性能提出了特殊的要求。
Mainly used in mine tunnel supports, especially for some roadways with relatively large deformation of surrounding rock, and also used in structures with special requirements for the performance of the mine supporting steel.
牌号和标准
产品牌号： 20MnVK、 Q275
Product grade: 20MnVK, Q275
执行标准： YB/T 5047-2000
执行标准： YB/T 5047-2000
产品规格
9、 11、 12、 29U、 36U
铁路车辆大梁用钢
Steel used for frame of railway vehicle
主要用途
主要用于 70 吨及以上的铁道车辆平车的大梁。
Mainly used in manufacture of the frame for the railway vehicle platform wagon of 70 tons and above.
牌号和标准
产品牌号： Q420NQR1
Product grade: Q420NQR1
执行标准： YB/T5182
Applicable standard: YB/T5182
产品规格
630×200 系列
630×200 Series
汽车大梁用钢
Steel for automobile frame
主要用途
本产品为专用型钢，主要应用于汽车、挂车、半挂车大梁，是焊接 H 型钢的替代产品。
This product is a dedicated steel, mainly used in manufacture of frames for automobile, trailer and semi-trailer girder, as an alternative to the welded H -section steel.
牌号和标准
产品牌号： LG510LH、 LG610LH、 LG710LH
Product grade: LG510LH, LG610LH, LG710LH执行标准： GB/T 11263
Applicable standard: GB/T 11263
产品规格
446×150、 456×150、 470×150、 482×153.5、 492×150、 504×153
叉车门架用钢
Steel for forklift portal-frame
主要用途
该产品主要应用于叉车制造业，主要用于制作 1.5～10t 规格叉车的门架制作。
This product is mainly used in forklift manufacturing industry mainly for manufacture of portal frame for forklift truck of 1.5~10t.
牌号和标准
产品牌号： HRB335、 20MnSi、 20MnSiV、 Q420C、 Q440C、 Q460C
Product grade: HRB335, 20MnSi, 20MnSiV, Q420C, Q440C, Q460C执行标准： Q/3700LYS247
Applicable standard: Q/3700LYS247
产品规格
C140b、 C160a/b、 C164b、 C180b、 C200b、 C220b、 C250b； J160a、J160b、 H120、 H140。
履带板
Track plate
主要用途
履带板主要用作链轨式挖掘机、推土机的行走部件。
Track plate is mainly used for manufacture of the travelling parts of track-mounted excavator and bulldozer
牌号和标准
产品牌号： 25MnB、 23MnBM
Product grade: 25MnB, 23MnBM执行标准： 《履带用热轧型钢技术协议》
Applicable standard: Technical Agreement on Hot-rolled Section Steel for Track
产品规格
LW190×8.5、 LW190×10、 LW135×6
中低速磁悬浮列车轨排
Middle and low speed Maglev train track skeleton
主要用途
应用于中低速磁悬浮列车轨道。
Used in medium and low speed maglev train track.
牌号和标准
产品牌号： Q235B、 LWR345B、 LWR345C、 LWR295D
Product grade: Q235B, LWR345B, LWR345C, LWR295D执行标准： Q/LYS 280、 Q/CYBM 004
Applicable standard: Q/LYS 280, Q/CYBM 004
产品规格
LGF372×96、 LGF372×96WR、LGH230×200Z、 LGH230×200ZWR
海洋工程用钢
Steel for ocean projects
主要用途
主要应用于海洋石油平台整体结构建造 、平台配套海上浮式储油船（FPSO ）模块制作、船舱顶梁及框架等结构制造。
Mainly used in construction of offshore oil platform structure, fabrication of platform supported Float Production
Storage and Offloading (FPSO ) module, manufacture of roof beam and frame structure of cabin.
牌号和标准
产品牌号： S275J2、 S355NL
Product grade: S275J2, S355NL执行标准： DNV、 EN10025-3
Applicable standard: DNV, EN10025-3
产品规格
H200B～HE1000B， UPN 系列槽钢、UPE 系列、 IPE 系列、角钢系列
H200B~HE1000B and UPN series channel steel, UPE series, IPE series and angle steel series
主要产品The main products邮箱：2电话：0531-67606362
高端齿轮钢
High-end gear steel
主要用途
具有良好的强度、韧性及稳定性。用于械装备中的重要零件，如机床、飞机、汽船及风扇等。
Provided with good strength, toughness and stability, suitable for use in the manufacture of important parts in mechanical equipment, such as machine tools, aircraft, steam boats, fans, etc..
牌号和标准
产品牌号： SCM822H、 SAE8620H、 18NiCrMo5、
Product grade: SCM822H, SAE8620H, 18NiCrMo5,
执 行 标 准 ： Q/370000SGT 103-2013 、 Q/370000SGT 100-2013 、EN10084-2008
Applicable standards: Q/370000SGT 103-2013, Q/370000SGT 100-2013, EN10084-2008
产品规格
Φ20～Φ310
高端轴承钢
High-end bearing steel
主要用途
具有较高的淬透性、耐磨性，疲劳性能良好。用于电动机、发电机、内燃机、燃汽轮机、机床主轴等变速装置。
Provided with high hardenability, wear resistance and good fatigue performance, suitable for use in manufacture of motor, generator, internal-combustion engine, steam turbine, machine tool spindle and other speed changing devices.
牌号和标准
产品牌号： GCr15SiMn
Product grade: GCr15SiMn
执行标准： GB/T18254-2002
Applicable standard: GB/T18254-2002
产品规格
Φ20~Φ310
铁路用钢
Railway Steel
主要用途
具有较高的强度、耐低温冲击性能。使用于拉货火车车厢连接件装置等。
Provided with high strength and low temperature impact resistance, suitable for use in manufacture of the connecting pieces for freight train carriage and other devices
牌号和标准
产品牌号： 25MnCrNiMoA
Product grade: 25MnCrNiMoA
执行标准：技术协议
Applicable standard: Technical agreement
产品规格
Φ20～Φ310
风电用钢
Steel for wind power
主要用途
具有较高强度、良好的耐低温冲击性能。使用于风电行业。
Provided with high strength and good low temperature impact resistance, suitable for use in wind power industry.
牌号和标准
产品牌号： S355NL
Product grade: S355NL
执行标准：技术协议
Applicable standard: Technical agreement
产品规格
Φ350～Φ800
石油管线用连铸圆坯
Continuous casting round billet for petroleum pipe
主要用途
具有较高的强度及抗硫化氢腐蚀性能。用于石油化工行业。
Provided with high strength and hydrogen sulfide corrosion resistance, suitable for petrochemical industry.
牌号和标准
产品牌号： X52NS
Product grade: X52NS
执行标准：技术协议
Applicable standard: Technical agreement
产品规格
Φ350~Φ800
系泊链及船用锚链用钢
Steel for mooring chain and marine anchor chain
主要用途
具有高强度、良好的韧性，而且具有好的耐海水腐蚀、耐磨损性能。使用于海洋石油开采及船舶构件等。
Provided with high strength and good toughness as well as good resistance to seawater corrosion and abrasion resistance, suitable for use in manufacture of structural components for offshore oil production and ship.
牌号和标准
产品牌号： CM490、 CM690
Product grade: CM490, CM690
执行标准： GB/T 18669
Applicable standard: GB/T 18669
产品规格
Φ20~Φ310
模具用钢
Die steel
主要用途
淬透性高，热处理变形率较低，其性能及使用寿命高。使用于模锻锤锻模、铝合金压铸模、热挤压模具、高速精锻模具及锻造压 力机模具。
Provided with high hardenability, low deformation rate of heat treatment, high performance and long service life, Suitable for use in manufacture of die forging hammer forging die, aluminum alloy die-casting die, hot extrusion die, high speed precision forging die and forging press die.
牌号和标准
产品牌号： H13
Product grade: H13
执行标准:GB/T1299—2000
Applicable standards: GB/T1299-2000
产品规格
Φ20～Φ310
高压锅炉用无缝钢管用钢
Steel for seamless steel tubes for high pressure b
主要用途
具有良好的塑性、 焊接性能及良好的抗高温氧化及耐腐蚀性能。 用于高压锅炉炉壁、核电热交换器、石油裂化装置等。
Provided with good plasticity and weldability as well as good resistance to high temperature oxidation and corrosion resistance, suitable for use in manufacture of high-pressure boiler wall, nuclear power heat exchanger, petroleum cracking device, etc..
牌号和标准
产品牌号： P91
Product grade: P91
执行标准：GB/T5310-2008 或技术协议
Applicable standard: GB/T5310-2008 or technical agreement
产品规格
主要产品The main products邮箱：4电话：0531-67606362
汽车大梁用热轧钢带
Hot rolled steel strip for automobile frame
主要用途
汽车大梁系列用钢产品主要用于商用车的主梁、横梁、边梁和车体等汽车结构性部件。要求具有足够的抗拉强度、屈服强度、良 好的成型性、较高的延伸率和优良的冷弯性能，可满足剪切、折弯、冲压、辊压、冲孔和焊接等多种加工要求，实物性能稳定。
AUTOMOBILE FRAME SERIES STEEL PRODUCTS ARE MAINLY USED IN MANUFACTURE OF THE MAIN BEAM, CROSSBEAM, SIDE-BEAM AND CAR BODY AND OTHER STRUCTURAL PARTS OF THE COMMERCIAL VEHICLE, WHICH ARE REQUIRED TO BE PROVIDED WITH SUFFICIENT TENSILE STRENGTH, YIELD STRENGTH, GOOD FORMABILITY, HIGH ELONGATION AND EXCELLENT COLD BENDING PROPERTIES THAT CAN MEET THE REQUIREMENTS OF SHEARING, BENDING, STAMPING, ROLL PRESSING, PUNCHING, WELDING AND OTHER PROCESSINGS, WITH STABLE PHYSICAL PROPERTIES.
牌号和标准
牌号： 510L、 610L、 700L、 J700、 J800 QStE380TM、 QStE420TM、 QStE460TM、 QStE500TM、 QStE700TMS420MC、 S460MC、S500MC、 S550MC、 S600MC、 S650MC、 S700MC
Grade: 510L, 610L, 700L, J700, J800 QStE380TM, QStE420TM, QStE460TM, QStE500TM, QStE700TMS420MC, S460MC, S500MC, S550MC, S600MC, S650MC, S700MC
执行标准： GB3273-2005《汽车大梁用热轧钢板和钢带》SEW092-1990《冷成型的热轧细晶粒钢》DIN EN 10149-2： 1996《冷成 型用的高屈服点钢热轧扁钢产品》
Applicable standard: GB3273-2005: Hot-Rolled Steel Plate and Steel Strip for Automobile Frame SEW092-1990: Cold Formed Hot-Rolled Fine Grain Steel DIN EN 10149-2: 1996 Hot Rolled Flat Steel Products with High Yield Point for Cold Forming
产品规格
1.2～25.4×830～1900mm
汽车车轮用热轧钢带
HOT ROLLED STEEL STRIP FOR AUTOMOBILE WHEEL
主要用途
汽车车轮系列用钢主要用于制造汽车滚型车轮的轮辐和轮辋，要求具有良好的延伸凸缘性、冷成型性、闪光焊接性及疲劳性能等 综合机械性能，而且应具有良好的表面质量和为保证车轮的气密性及其运行时不产生大的旋转振摆或失衡的尺寸公差。
Automobile wheel series steel products is mainly used for manufacture of spokes and rim for rolling-type wheel of a automobile, which are required to be provided with good flange elongation, cold forming, flash welding, fatigue properties and other mechanical properties, and should also have good surface quality and the dimensional tolerance to ensure the air tightness of the wheel and no large rotating vibration pendulum occurring in its operation.
牌号和标准
牌号： 330CL、 380CL、 420CL、 490CL、 SAPH310SAPH370、 SAPH400、 SAPH440、 SH540FB、 SH580FB、 HR440/580HE
Grade: 330CL, 380CL, 420CL, 490CL, SAPH310SAPH370, SAPH400, SAPH440, SH540FB, SH580FB, HR440/580HE
执行标准：YB/T4151-2006《汽车车轮用热轧钢板和钢带》JISG3113《汽车结构用热轧钢板和钢带》及公司内控标准 SGYJ-001-2015 《汽车车轮用高强度热轧高扩孔钢钢板和钢带》GBT 20887.2-2010 《汽车用高强度热连轧钢板及钢带 第 2 部分： 高扩孔钢》
Applicable standard: YB/T4151-2006: Hot-Rolled Steel Plate and Steel Strip for Automobile Wheel JISG3113: Hot Rolled Steel Plate and Steel Strip for Automotive Structures and SISG’s internal quality standards SGYJ-001-2015: High Strength Hot Rolled High Reaming Steel Plate and Steel Strip for Automobile Wheel GBT 20887.2-2010: High Strength Hot Rolled Steel Plate and Steel Strip for Automobile-Section 2 : High Reaming Steel
产品规格
1.2～25.4×830～1900mm
汽车用高强度热轧双相钢带
High strength hot rolled dual-phase steel strip fo
主要用途
热轧双相钢一般用于需高强度、高的抗碰撞吸收能且有一定成型要求的汽车零件，如车轮、保险杠、悬挂系统及其加强件等。热 轧双相钢具有强度高、屈强比低、初时加工硬化率高以及强度和韧性良好配合等优点，符合汽车材料轻量化、高性能、安全、环保、 节能的发展主题，从而在汽车行业得到了较为广泛的应用。
The hot rolled dual-phase steel is generally used for automotive parts with high strength, high impact resistance and absorbing energy and should meet a certain forming requirement, such as wheels, bumpers, suspension systems and their reinforcing parts. The hot rolled dual phase steel is provided with high strength, low yield ratio, high initial processing hardening rate, excellent matching between strength and toughness and other advantages, in line with the development theme of lightweight, high performance, safety and environmental protection, energy saving for automotive materials, which has thus been widely used in the automotive industry.
牌号和标准
牌号： DP540、 DP600
Grade: DP540, DP600
执行标准： JGX677-2010 《高强度热轧双相钢板和钢带供货技术条件》GB/T20887.3-2010 汽车用高强度热连轧钢板及钢带-第三 部分，双相钢
Applicable standard: JGX677-2010: Technical Requirements for Supply of High Strength Hot Rolled Dual-Phase Steel Plate and Strip
GB/T20887.3-2010: High Strength Hot Rolled Steel Plate and Steel Strip for Automobile - Section III-Dual Steel
产品规格
1.2～25.4×830～1900mm
汽车传动轴用热轧钢带
Hot rolled steel strip for automobile transmission
主要用途
主要用于制作汽车传动轴管，由于传动轴管主要作用是支撑回转体、传递动力，故要求材料应具有：足够的强 度、刚度和一定的韧性以及较高的疲劳强度， 即要求原材料具有良好的综合力学性能。 制造汽车传动轴管一般采用直缝焊接工艺， 尺寸控制工艺采用通过控制外径来控制内径尺寸的方法，因此要求传动轴管用钢具有良好的焊接性能和高的尺寸精度。
Automobile transmission shaft tube steel is mainly used to make automobile drive shaft tube. As the main function of the transmission shaft tube is to support revolving body and transmit power, the material should be provided with: sufficient strength, stiffness and a certain degree of toughness as well as higher fatigue strength, that is, the raw materials should be provided with good comprehensive mechanical properties. The longitudinal welding technology is generally used to manufacture the automobile transmission shaft tube, and the dimension control process is based on the method of controlling the inner diameter by controlling the outer diameter; Therefore, the steel for the shaft tube of the transmission shaft should be provided with good welding performance and high dimensional precision.
牌号和标准
牌号： 440QZ、 480QZ、 700QZ
Grade: 440QZ, 480QZ, 700QZ
执行标准： JGX658-2010 《 440QZ、 480QZ 热轧钢带技术协议》
Applicable standard: JGX658-2010: 440QZ, 480QZ Technical Agreement for Hot Rolled Steel Strip
产品规格
1.2～25.4×830～1900mm
石油天然气输送管用热连轧钢带
Hot continuous rolling steel strip for petroleum a
主要用途
石油天然气输送管用热连轧钢带具有较高的强度、高的塑韧性，低的韧脆性转变温度，良好的焊接性能以及优良的抗氢致开裂和 硫化物应力腐蚀开裂性能，主要用于制造输送石油、天然气、水煤浆等介质的管道。
The hot continuous rolling steel strip for petroleum and gas transportation pipeline is provided with high strength, high plasticity, low ductile brittle transition temperature,good weldability, good welding performance as well as excellent anti-HIC and sulfide stress corrosion cracking properties, which is mainly used in manufacture of pipelines for transporting petroleum, natural gas, coal-water slurry and other media.
牌号和标准
执行标准： GB/T14164-2013 《石油天然气输送管用热轧宽钢带》API Spec 5L 《管线钢管》 GB/T9711.2-1999《石油天然气工业输送钢管交货技术条件》
GB/T14164-2013: Hot Rolled Wide Steel Strip for Transportation Pipeline of Oil and Gas Pipelines;
API Spec 5L: Steel Pipe for Pipeline ; GB/T9711.2-1999: Technical Specification for Delivery of Transportation Steel Pipe for Petroleum and Natural Gas Industry
产品规格
4.0~25.4×830~1900mm
油井套管用热连轧钢带
Hot continuous rolling steel strip for petroleum w
主要用途
主要作为焊接油井套管的原材料，公司油井套管用热轧钢带具有尺寸精度高，焊接性能佳、作成焊管在地下服役时抗挤毁、抗压 溃能力强的特点。
Mainly used as the raw material for welded petroleum well casing; SISG’s hot-rolled steel strip for petroleum well casing is characterized by high dimensional precision, good welding performance, and resistance to collapse and resistance to crushing when serving as welded pipe underground.
牌号和标准
执行标准：公司技术协议及 API Spec 5CT
Applicable standard: SISG’s technical agreement and API Spec 5CT
产品规格
3.5～25.4×830～1900mm
低铝、低碳、低硅复合材料用热轧钢带
Hot rolled steel strip for low aluminum, low carbo
主要用途
主要用作钢铝复合板基料。钢铝复合材料结合了钢的高强度、易清洗和铝的质轻、价廉、 优良的导电、导热性等优点，在航空、机械、化工、医疗、汽车、电力等多方面领域得到了广泛应用。
The hot-rolled steel strip for low aluminum, low carbon and low silicon composite materials is mainly used as base material for steel-aluminum composite plate. Steel aluminum composite has been widely used in many fields, such as aviation, machinery, chemical engineering, medical treatment, automobile, electric power and so on, thanks to its high strength, easy cleaning, light weight, low price, excellent electrical conductivity and thermal conductivity.
牌号和标准
牌号： YBFe、 SRG、 DK50、 DC01-LY
执行标准：技术协议
Grade: YBFe, SRG, DK50, DC01-LY
Applicable standard: Technical agreement
产品规格
2.0~6.0×900~1550mm
集装箱用热轧钢带
Hot rolled steel strip for containers
主要用途
集装箱用钢具有较高的耐大气腐蚀性能，用于集装箱外板、结构件等的制造。公司开发的集装箱钢采用低碳钢中复合添加 Cu、 P、 Cr、 Ni 的合理成分设计，钢材耐腐蚀性优异，而且尺寸精度、板型、表面质量、成型性指标良好，较好地满足了集装箱用钢的使用 要求。
The steel for containers is provided with high atmospheric corrosion resistance, suitable for use in manufacture of container shell plate, structural parts and so on. The container steel developed by SISG is based on the design with reasonable composition of Cu, P, Cr and Ni added in the low carbon steel, with excellent corrosion resistance and precise dimension as well as good plate shape, surface quality and formability index, which can well meet the requirements for the container steel.
牌号和标准
牌号： SPA－H
Grade: SPA - H
执行标准： JIS G3125 《高耐大气腐蚀轧制钢板》
Applicable standard: JIS G3125: High Atmospheric Corrosion Resistant Rolled Steel Plate
产品规格
2.5～6.0×900～1350mm
主要产品The main products邮箱：5电话：0531-67606362
公海彩船出口的钢筋产品
SISG’s steel products for export
主要用途
牌号和标准
|
No. |
Supply grade |
Standard |
Specification mm |
Delivery status |
Application field |
|
1 |
British standard 460 (B) |
BS4449 |
Φ10-Φ50 |
Hot rolled |
Export, Foreign engineering construction |
|
2 |
British standard B500B |
BS4449 |
Φ10-Φ50 |
Hot rolled |
|
|
3 |
Japanese standard SD295A |
JISG3112 |
D10-D51 |
Hot rolled |
|
|
4 |
Australian standard 500N |
AS/NZS4671 |
Φ12-Φ36 |
Hot rolling/Controlled rolling |
|
|
5 |
Korean standard SD400 |
KS D 3504 |
D10-D5 |
Hot rolled |
|
|
6 |
Japanese standard SD390 |
JISG3112 |
D10-D51 |
Hot rolled |
|
|
7 |
Japanese standard SD390 |
ASTM A615-A615M |
3#-18# |
Hot rolled |
|
|
8 |
Malaysia |
MS146 |
According to user's requirement |
According to user's requirement |
产品规格
普通建筑用热轧钢筋
HOT ROLLED REINFORCING BARS FOR ORDINARY BUILDING
主要用途
牌号和标准
|
序号 |
名称 |
牌号 |
规格 mm |
执行标准 |
用途 |
|
1 |
热轧带肋钢筋盘条 |
HRB400/HRB400E/HRB500/HRB500E |
Φ6-Φ10 |
GB1499.2 |
建筑用钢 |
|
2 |
热轧光圆钢筋盘条 |
HPB235/HPB300 |
Φ6-Φ22 |
GB1499.1 |
建筑用钢 |
|
3 |
钢筋混凝土用热轧带肋钢筋 |
HEB335/HRB400/HRB500/HHB335E/HRB400E/HRB500E/HRB600 |
Φ10-Φ50 |
GB1499.2 |
建筑用钢 |
No.
Name
Grade
Specification
mm
Applicable
standard
Purpose
1
Hot rolled ribbed steel bar wire roll
HRB400/HRB400E/HRB500/HRB500E
Φ6-Φ10
GB1499.2
Steel for building
2
Hot rolled plain round steel bar roll
HPB235/HPB300
Φ6-Φ22
GB1499.1
Steel for building
3
Hot rolled ribbed steel bar for
reinforced concrete
HEB335/HRB400/HRB500/ HHB335E/HRB400E/HRB500E/
HRB600
Φ10-Φ50
GB1499.2
Steel for building
产品规格
特殊用途棒材
Bar materials for special purpose
主要用途
牌号和标准
|
No. |
Steel grade |
Steel grade |
Specification mm |
Applicable standard |
Purpose |
|
1 |
Anti-seismic Reinforceing steel bar |
HRB335E/HRB400E/HRB500 |
Φ10-Φ50 |
GB1499.2 |
Applied to seismic prone areas and building with high requirements or super high-rise buildings with special use requirements, large-span bridges, airports, nuclear power plants, tunnels, water conservancy projects and other fields. |
|
2 |
Finish rolling thread steel |
PSB785/PSB 830/HRB500JZ |
Φ25, Φ32 |
GB/T20065 |
Used in continuous beam and large frame structure in super large building, large water conservancy project, industrial and civil buildings, and highway and railway large and medium span bridges, nuclear power plant, ground anchors and other projects. |
|
3 |
Hot rolled Round steel |
20MnSi |
Φ14-Φ60 |
Φ14-Φ60 |
Used in manufacture of chains |
|
4 |
Anchor rod Reinforceing steel bar |
MG335 |
Φ18-Φ22 |
LGJX16-2011 |
Mainly used in coal mine roadway support, and also suitable for use in highway tunnel support and side rock protection. |
|
MG400 |
|||||
|
MG500 |
LGJX12-2011 |
||||
|
Full-strength anchor rod |
LGJX14-2011 |
||||
|
Right-screw anchor rod |
Φ16-Φ22 |
LGJX02-2010 |
|||
|
CRM600 |
Φ22 |
||||
|
CRM600 |
Φ220, Φ22 |
LGJX49-2010 |
|||
|
5 |
Resin anchor Rod steel bar |
MG335-MG600 |
Full sizes |
Full series |
产品规格
鲁公网安备 37010102000509号
